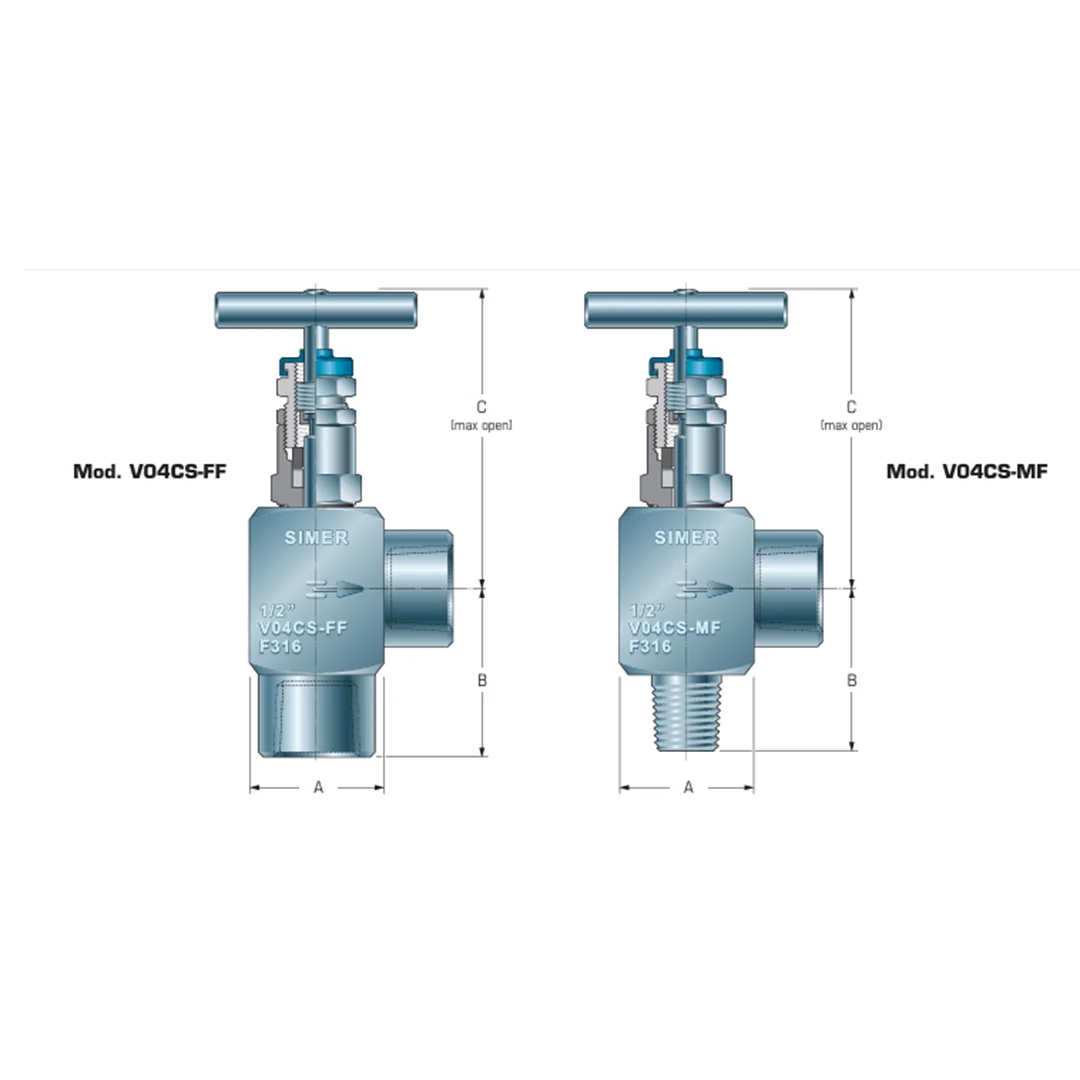

Needle plug valves from bar stock - V04CS
-V04CS
Needle plug valves from bar stock - V04CS
Needle plug valve for instrument cut-off and general use on small diameter pipe lines.
Technical specifications
- Bar stock body with inside screwed bonnet
- Connections: 90° Threaded or socket welding
- Nominal operating pressure: Serie 3000-6000 / 210- 420 Kg/cmq
- Packing material P.T.F.E. as standard max temperature 180°C
- Packing for temperature until 5OO°C in Grafoil
- Material: AISI 316.
Other material on request
