Needle plug multiport valves from bar stock - V07MP
This valve have been studied to allow simultaneous of 2-3 outlets.
This valve give a technical and economic advantage, resolving many problems when you combine some instruments to one outlet only.

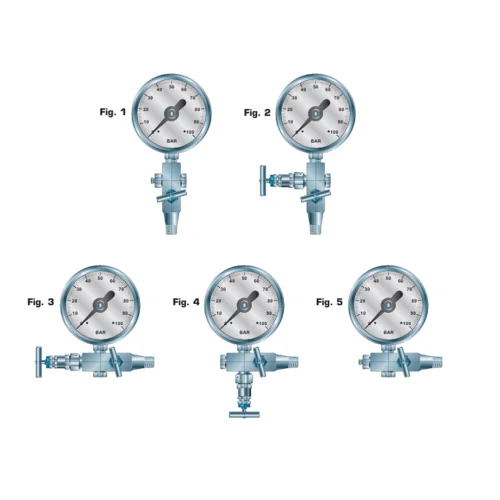

Example: Simultaneos use of the transmitter and sample manometer or combine of instruments which required 2 or 3 outlets.
Technical specifications

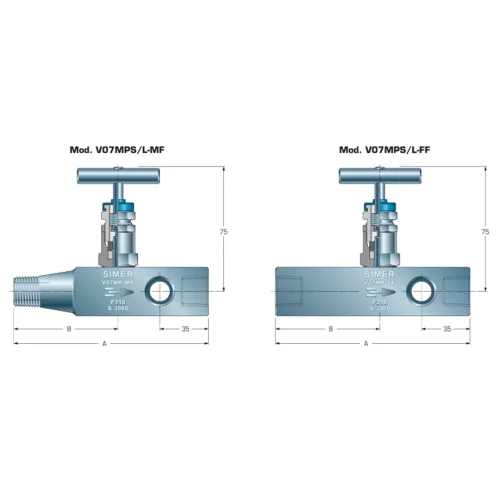

- Bar stock body with screwed bonnet
- Trim with free needle plug with dry threaded stem
- Nominal operating pressure: Serie 3000-6000 / 210- 420 Kg/cmq
- Packing material PTFE as standard max temperature 180°C
- Packing for temperature until 5OO°C in Grafoil
- Material: AISI 316.
Other material on request
Request more information
Needle plug multiport valves from bar stock - V07MP
