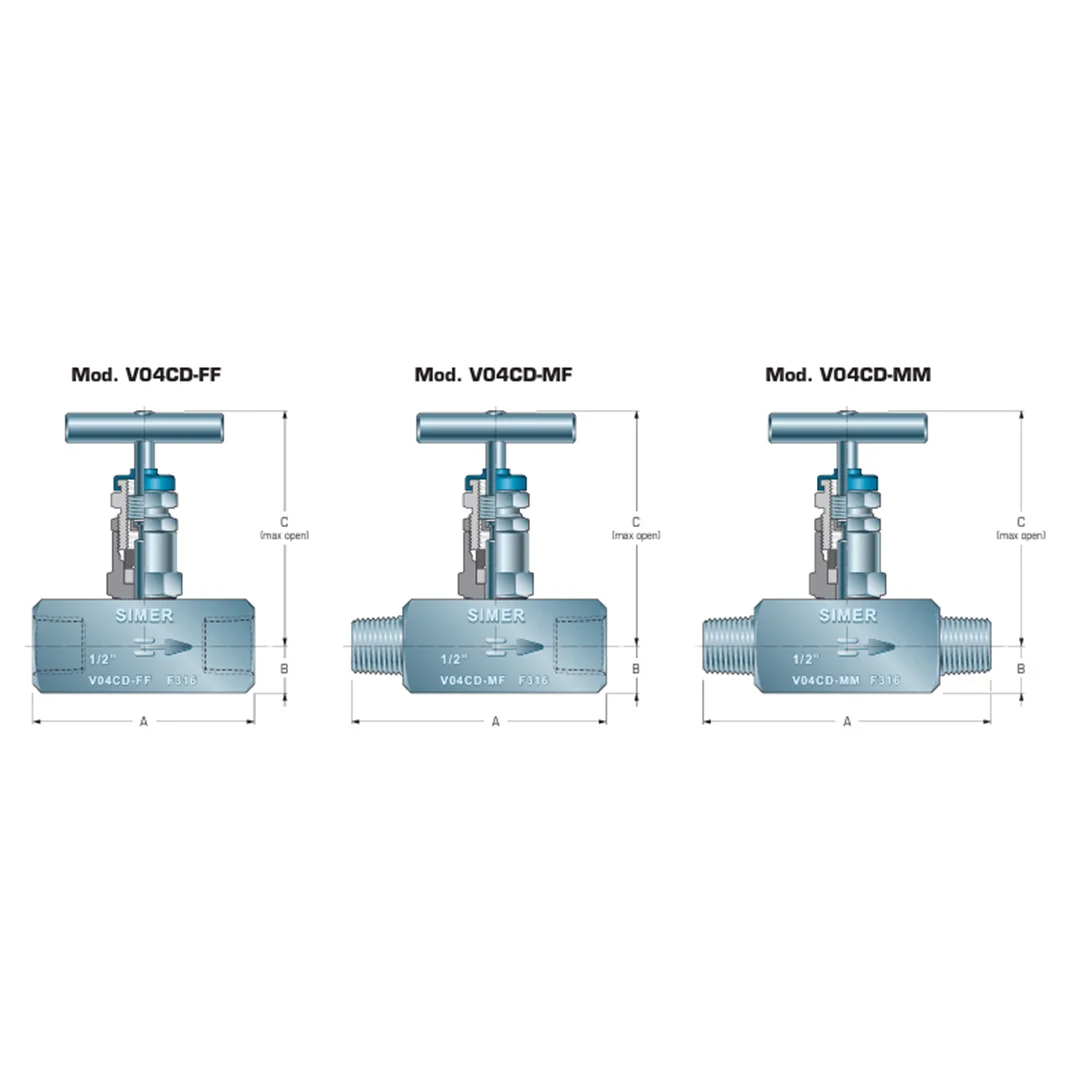

Needle plug valves from bar stock - V04CD
-V04CD
Needle plug valves from bar stock - V04CD
Needle plug valve for instrument cut-off and general use on small diameter pipe lines.

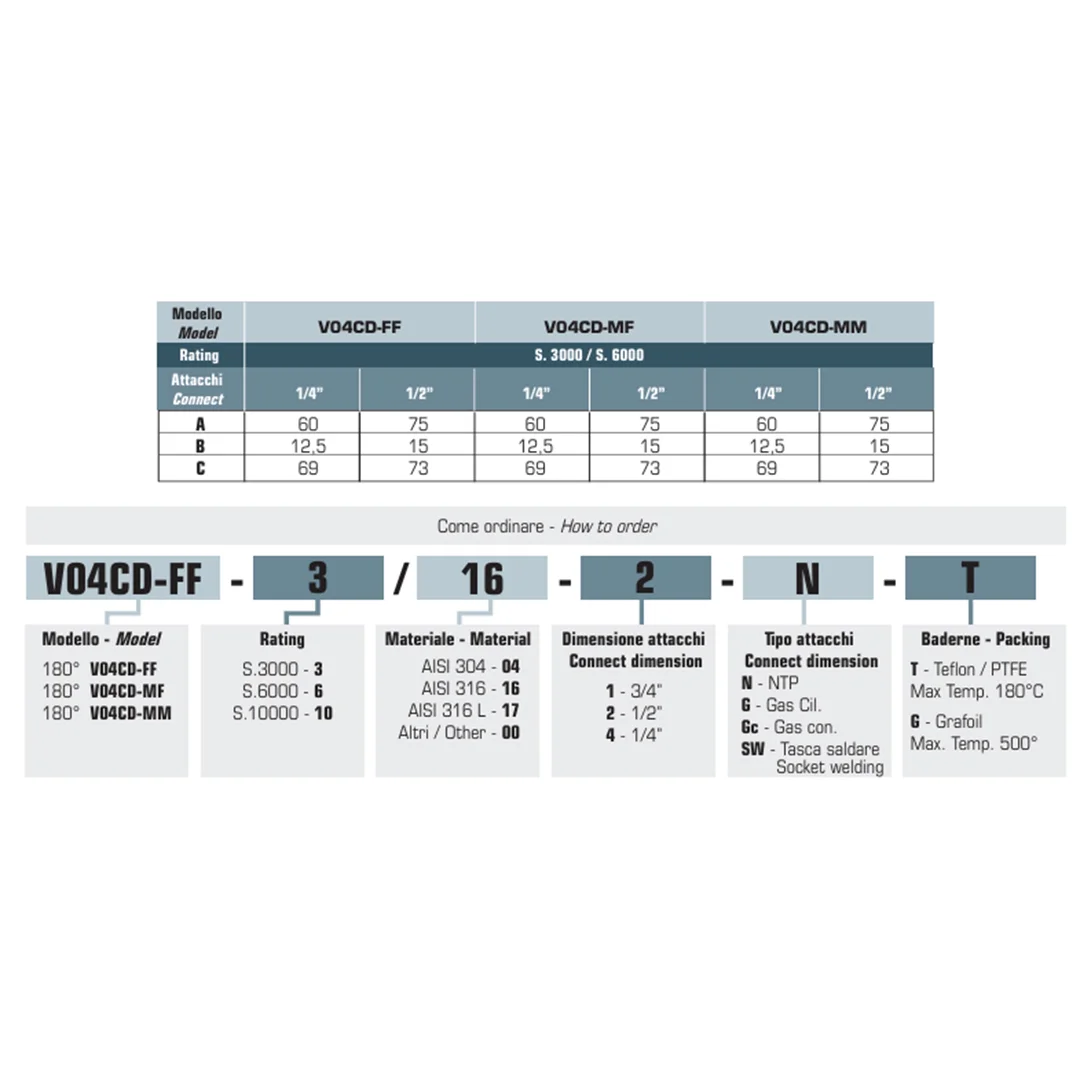

Technical specifications
- Bar stock body with outside screwed bonnet
- Connections: 180° Threaded or socket welding
- Nominal operating pressure: Serie 3000-6000 / 210- 420 Kg/cmq
- Packing material P.T.F.E. as standard max temperature 180°C
- Packing for temperature until 5OO°C in Grafoil- Material: AISI 316.
Other material on request
Request more information
Needle plug valves from bar stock - V04CD
