Sample cooling coils - RB
Counterflow cooling coil sample. Extremely rugged with the coil inside the shell. Suitable to be mounted on sample panel board. Mounting is facilitated by two clamp type brackets. Internal cooler baffling is arranged for maximum rate of the heat transfer high efficiency and low coolant presaure loss.
Technical specification

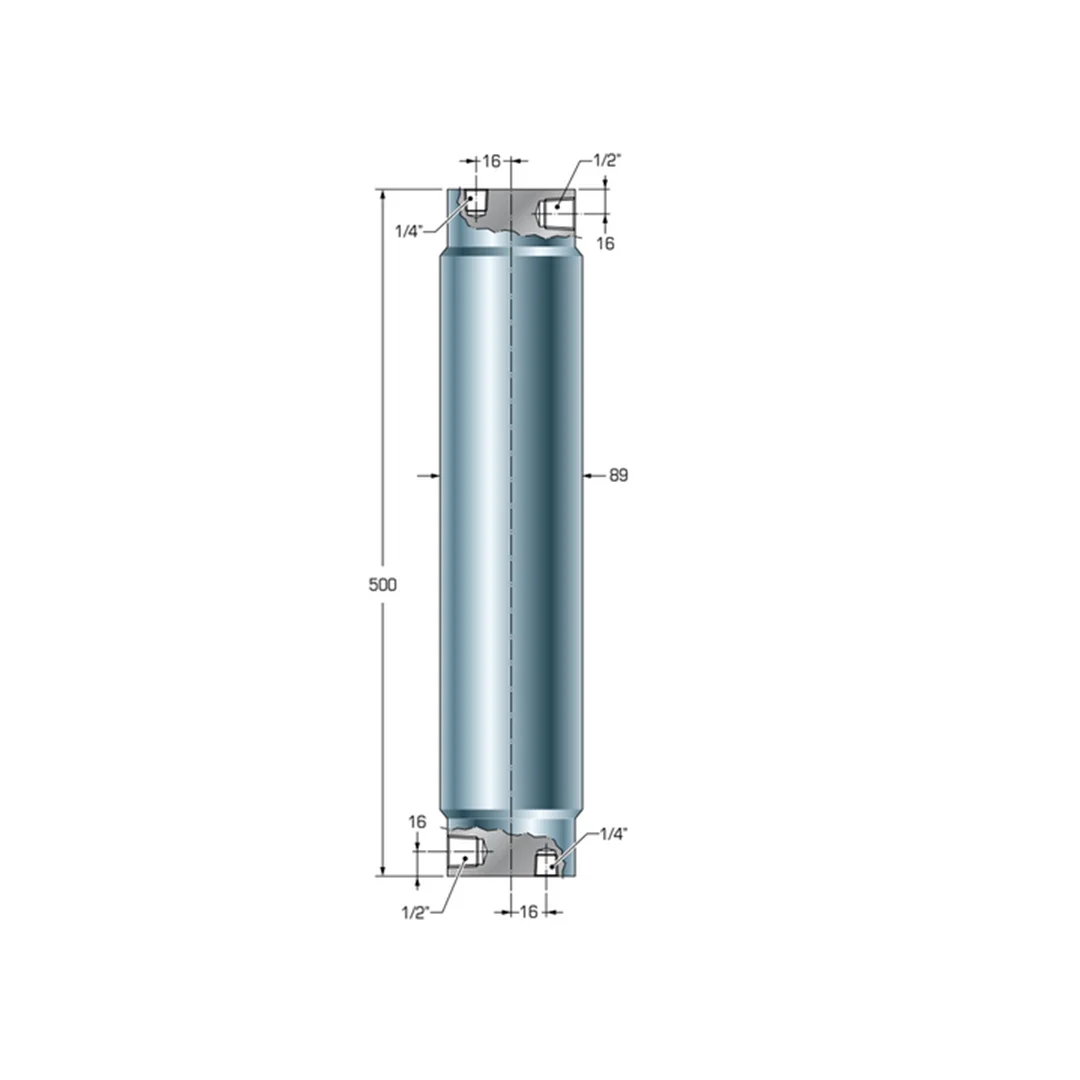

Cooling coil with baffling inside a shell. Counterflow operation.
Material
- Coil and terminal head material AISI 316
- Shell and mounting bracket mat.: Carbon steel
- Sample connections 1/4” NPI-F ANSI B1.20.1 (Standard), 1/4” SW Socket welding
- Coolant connections 1/2” NPT-F ANSI B1.20.1
- Nominal heat transfer capacity Approx. 140 BTU/hr. , Depend on coolant and sample temperatures and flows
- Rating Cooling coil rating: 6000 PSI at 4OO°C, Shell rating: 365 PSI at 100°C
- The heat transfer capacity can be increased by connecting coils in series or parallel.
Request more information
