-BDE

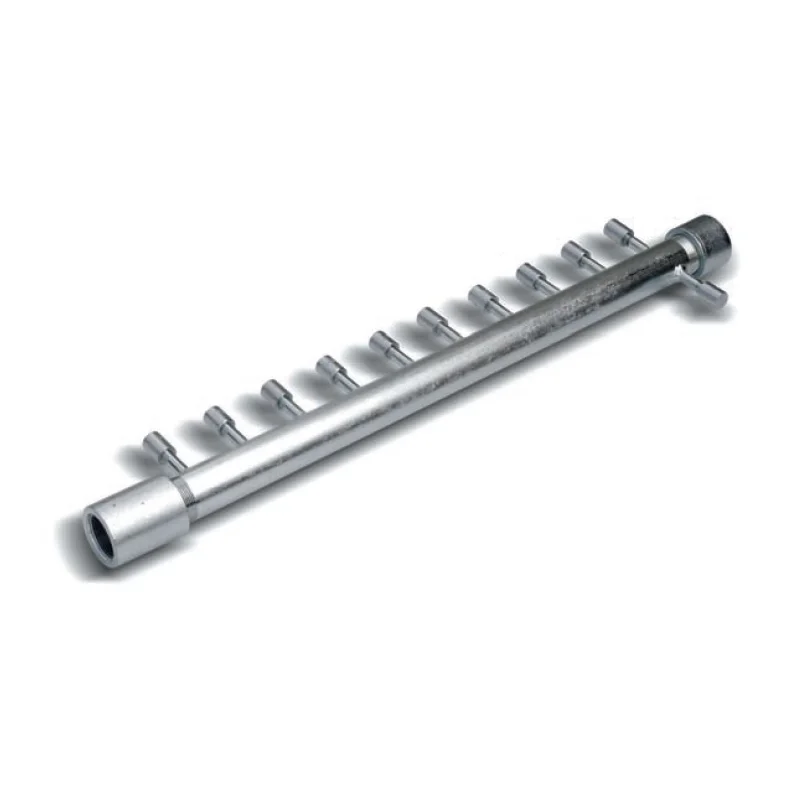

Instruments air feed headers - BDE
This type of air feed headers may be employed for centralizing several connections in air distribution networks, with the possibility of condense drain.
- Material standard galvanized carbon steel.
- Body from seamless pipe Ø 1”1/2 sch. 80
- Inlet connection threaded 1’’1/2 femal.
- Outlet connections threaded : 1/4” Male
- Drain connection threaded: 1/4 Male
- Complete of female cap and coupling 1”1/2 S. 3000
- Max. operating pressure: 18 Bar
- Test pressure : 30 Bar
Request more information
