BM2VP
-BM2VP

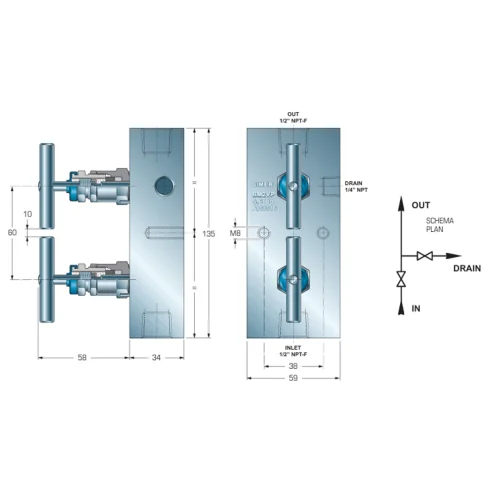

Two valves manifold for pressure instrument - BM2VP
Technical specifications
- In Bar stock body with outside screwed bonnet
- Process and instrument connections: 1/2” NPT-F ANSI B1.20.1
- Standard drain connections: 1/4” NPT-F ANSI B1.20.1
- N. 2 Bore M8 threaded for mounting on bracket
- Nominal operating pressure: SERIE 3000 - 6000 / 210 - 420 Kg/cmq.
- Packing material PTFE as standard max temperature 180°C. For temperature until 50O°C, special packing free asbestos.
- Orifice size 4 mm
- Material: AISI 316.
Other material on request
