Three valve by-pass instruments manifold - BM3VD
-BM3VD

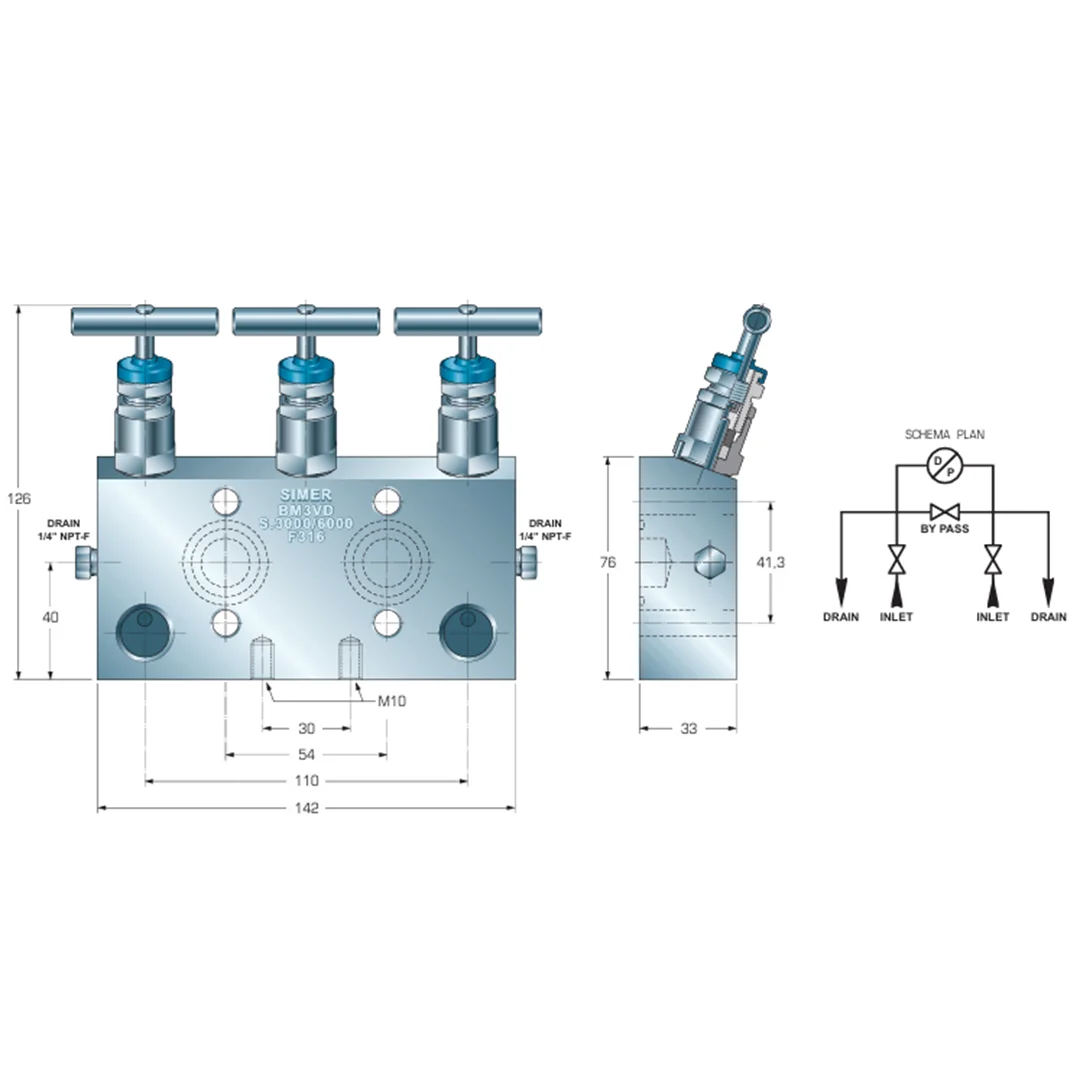

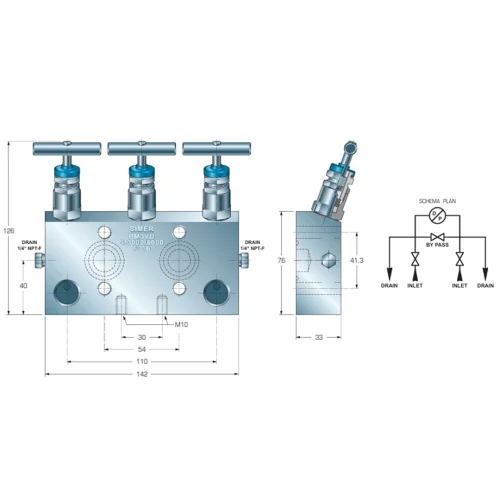

Three valve by-pass manifold for direct mounting on differential pressure instrument - BM3VD
Technical specifications
- Bar stock body with outside screwed bonnet
- Process connections threaded 1/2” ANSI B1.20.1
- Instrument connections flanged center to center 54 mm
- Standard drain connections thrd.1/4” NPT-F ANSI B1.20.1 (Drain connections thrd. 1/2” NPT-F on request only)
- Nominal operating pressure: SERIE 3000 - 6000 / 210 - 420 Kg/cmq.
- Packing material PTFE as standard max temperature 180°C. For temperature until 500°C special packing free asbestos.
- Orifice size 5,0 mm
- Material: AISI 316.
Other material on request
The manifold is complete of nr. 4 screw threaded 7/16 UNF and nr. 2 O-Ring material glass charged PTFE.
