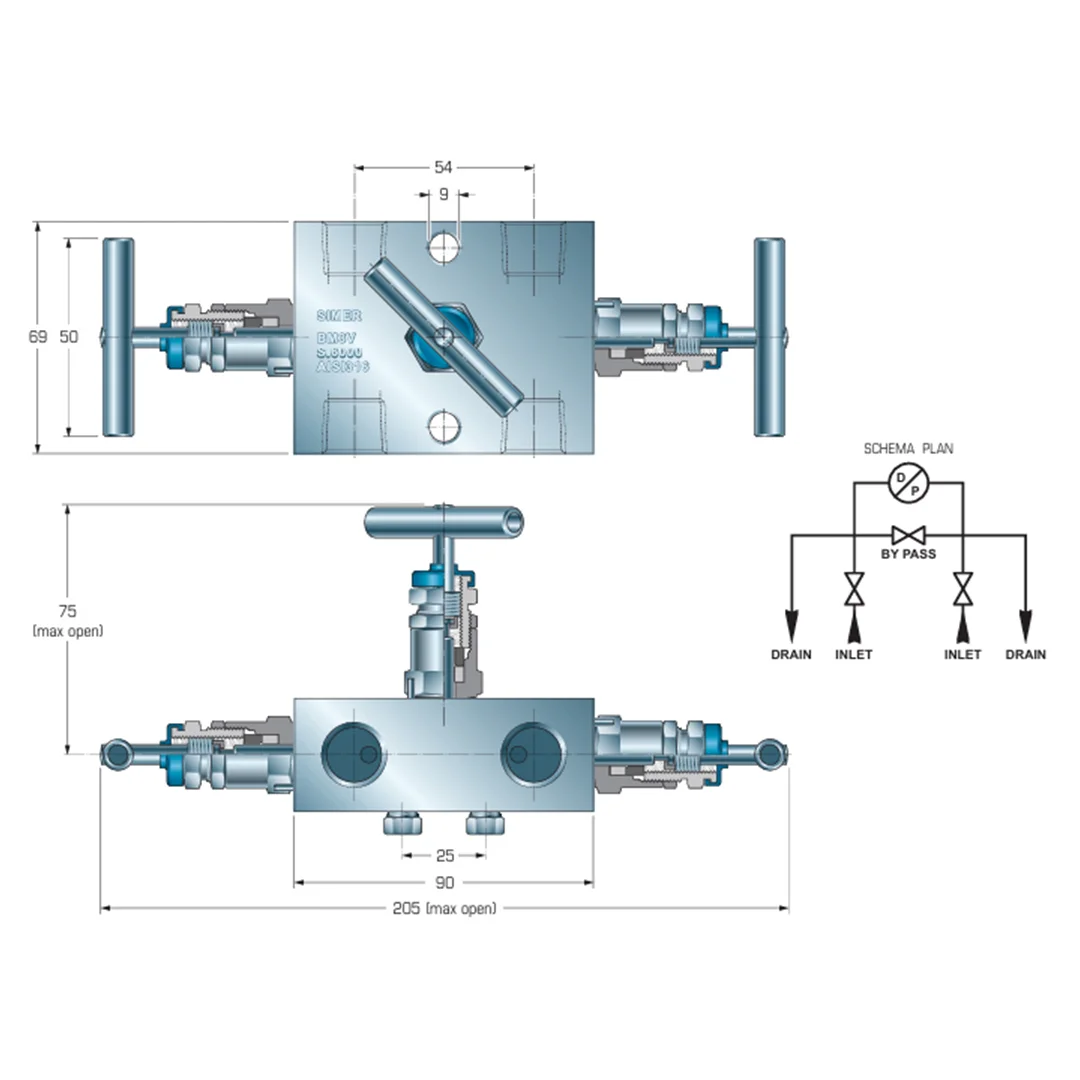

Three valve by-pass instruments manifold - BM3V
-BM3V
Three valve by-pass instruments manifold - BM3V
Technical specifications
- Bar stock body with outside screwed bonnet
- Connections threaded 1/2” NPT-F at 180° Other thread on request
- Drain connection threaded 1/4” NPT-F
- Nominal operating pressure: SERIE 3000 - 6000 / 210 - 420 Kg/cmq.
- Packing material PTFE as standard max temperature 180°C.
- Packing for temperature until 500°C in Grafoil.
- Material: AISI 316.
Other material on request
Request more information
Three valve by-pass instruments manifold - BM3V
