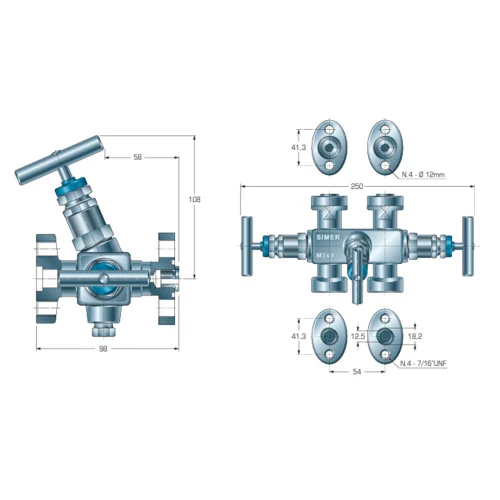

Three valves by-pass manifold for differential pressure instruments - M3VY
This manifold with inclined By-Pass valve is designed for direct coupling on mdern electronical differential pressure transmitters with local indicator.
Technical specifications
- Forged body with inside screwed bonnet
- Connections: Flanged
- Drain connection threaded 1/4” NPT-F
- Nominal operating pressure: Serie 3000 – 6000 / 210 – 420 Kg/cmq
- Packing material P.T.F.E. as standard max temperature 180°C. Packing for temperature until 50O°C in special plait free asbestos.
- Orifice size 5.5 mm
- Material: A105 – AISI 316.
Other material on request.
