Three valves by-pass manifold for differential pressure instruments - M3VF
-M3VF
Three valves by-pass manifold for differential pressure instruments - M3VF
Technical specifications
- Forged body with inside screwed bonnet
- Connections: Flanged
- Drain connection threaded 1/4” NPT-F

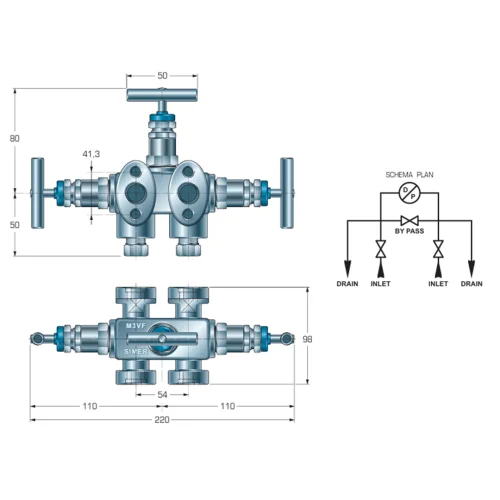

- Center to center connections lenght 54 mm
- Nominal operating pressure: Serie 3000 – 6000 / 210 – 420 Kg/cmq
- Packing material P.T.F.E. as standard max temperature 180°C. Packing for temperature until 50O°C in special plait free asbestos.
- Orifice size 6.5 mm
- Material: A105 – AISI 316.
Request more information
Three valves by-pass manifold for differential pressure instruments - M3VF
