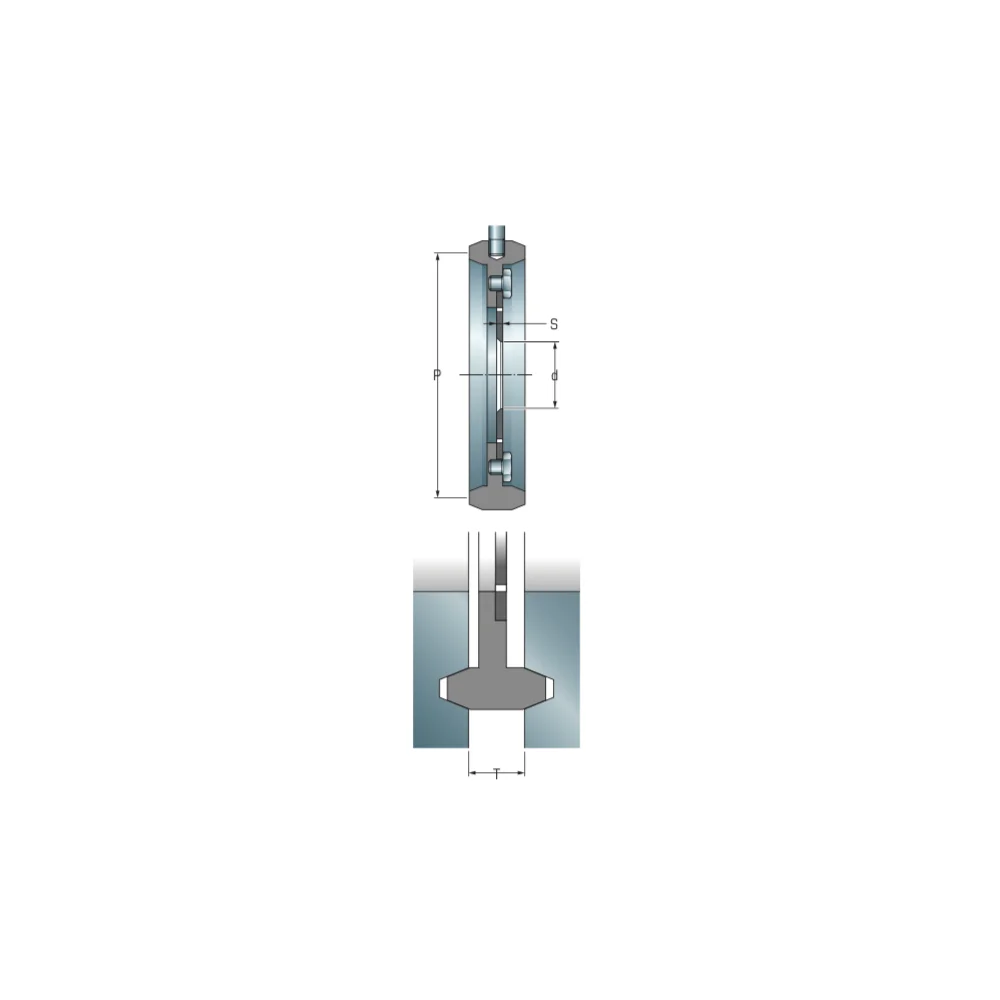

Welding neck orifice fanges - RJ
Type of element: square edge orifice, quadrant orifice, conical entrance orifice, segmental orifice
Type of pressure tap and relevant calculation:
- Flange taps – pressure tap on flanges or carrier ring
- Corner taps – pressure tap on flanges or carrier ring or on monolithic plate
- Radius / Pipe taps – pressure tap shall be welded on pipe (in this case the supply shall be supplied complete with relevant spool pipe)
Flow Calculation standard: ISO 5167 / ASME MFC-3M / ASME PTC 19.5
Beta ratio: beta ratio 0.1÷0.75
Request more information
Welding neck orifice fanges - RJ
