Flow nozzles

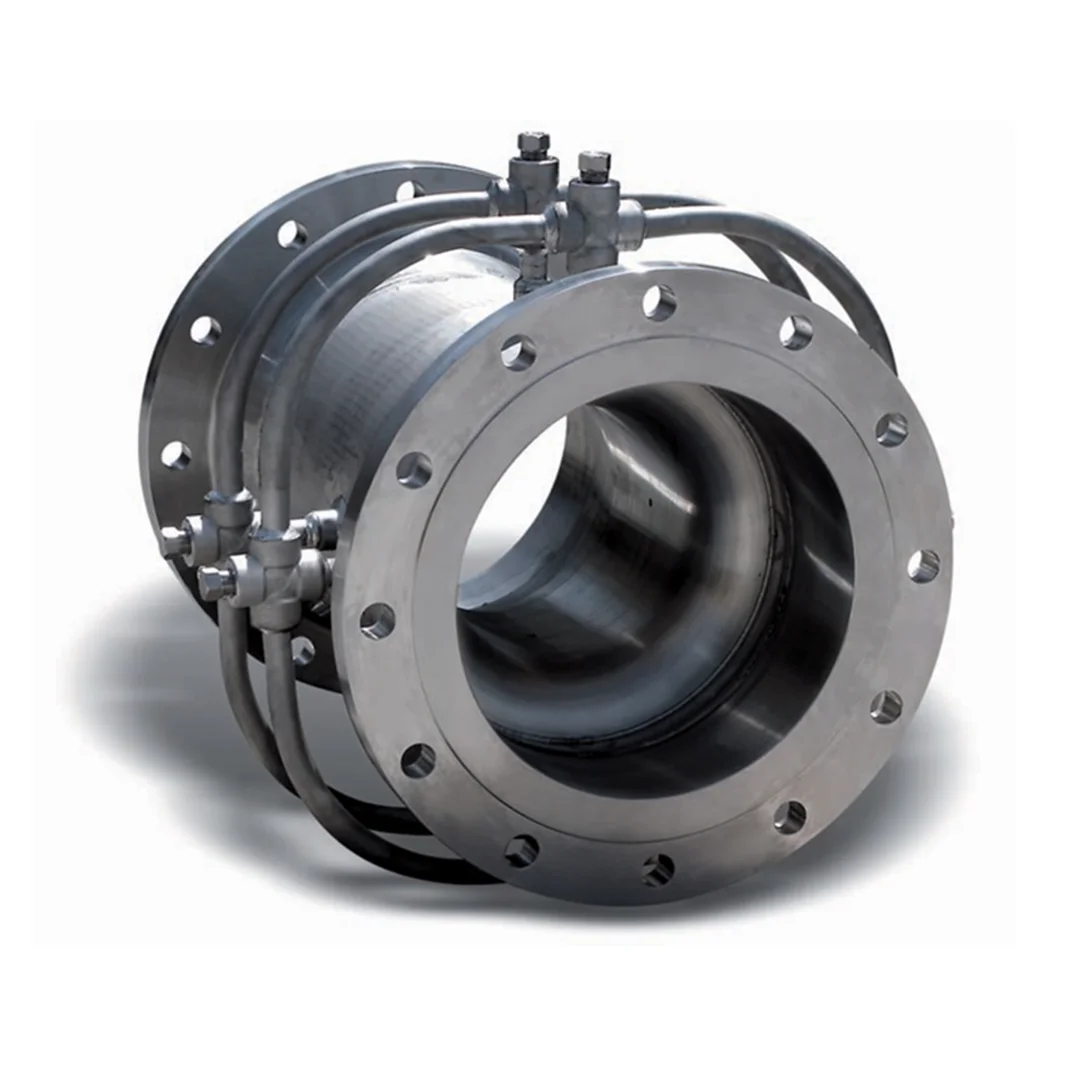

Flow Nozzle is a differential pressure device to measure flow rate in a closed conduit for heavy applications and high flow rate.

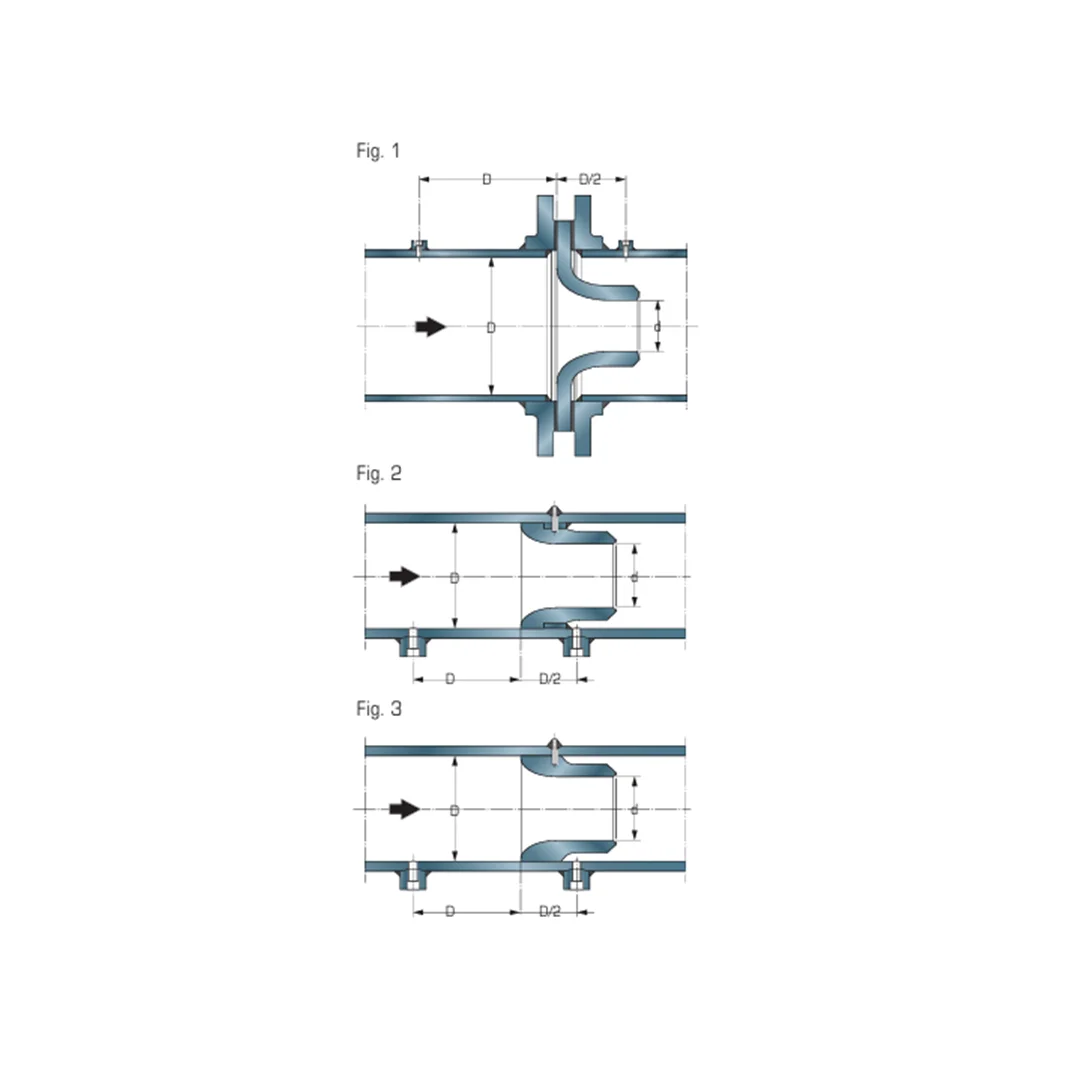

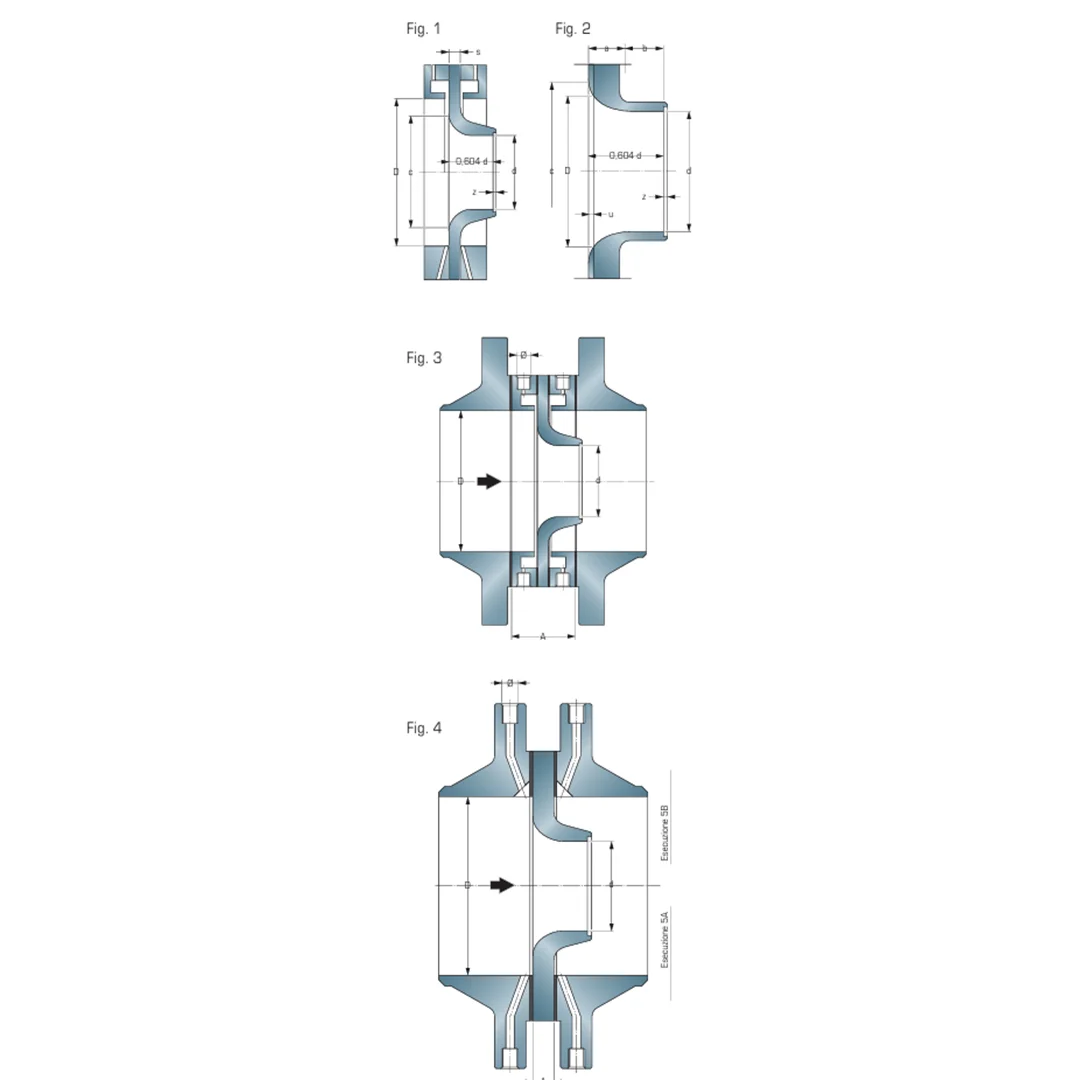

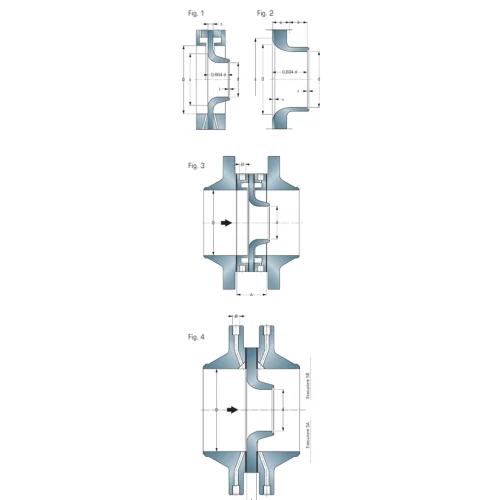

- Standard of construction: Flanged, welded in pipe with pins
- Flow Calculation standard: ISO 5167 / ASME MFC-3M / ASME PTC 19.5

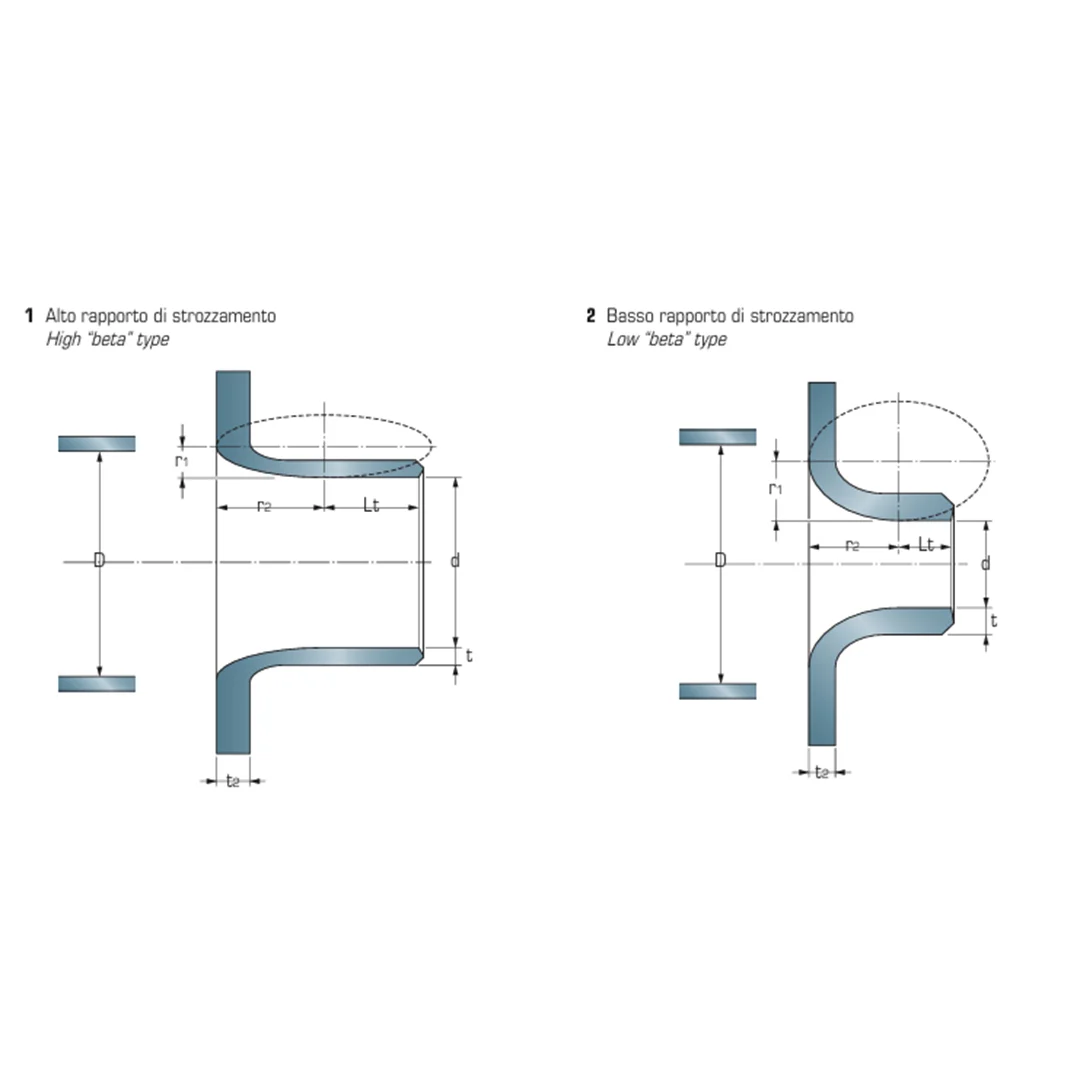

- Beta ratio: ISA 1932 Nozzle beta 0.3÷0.8 / Long Radius Nozzle beta 0.2÷0.8 / Venturi Nozzle beta 0.316÷0.775
Request more information
