Description

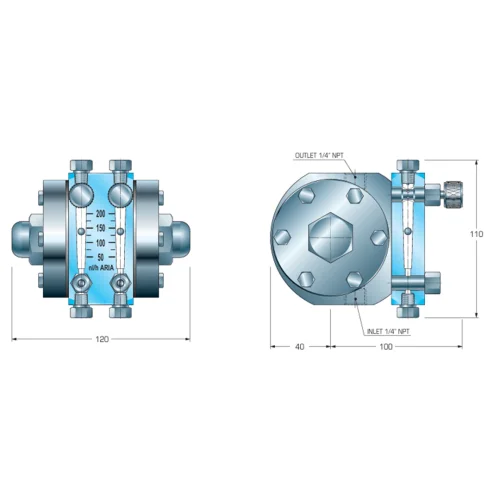

This instrument combine a double flowmeter and flow regulator in a single unit.

Working operation
The double regulator, as for single regulator, serve to maintain the flow rate set on the precision adjusting valve independently of fluctuations in inlet pressure.
This instrument offer the vantage of common inlet and two separate and independent outlets with double flow rate scale reading on single flowmeter, furthermore this instrument offer a considerable reduction of cost of installation in term of material, accessories and time.

Application

• Low water or air flow dosage.
• Purge of pressure or differential pressure connections.
• Bubbling level measurement.

Material
Meter body: Plexiglass
Ball: Nylon – P.I.F.E. AISI 316
O-Rings: Viton
Valve: AISI 316
Connections: AISI 316
Autoregulator: AISI 316
Diaphragm: P.T.F.E.

Technical data
Std. Scale length : 50 mm
Max. inlet pressure : 20 Bar
Max. Temperature : 7O°C
Accuracy : 10% M.S.R.
Connections : 1/4” NPT-F
