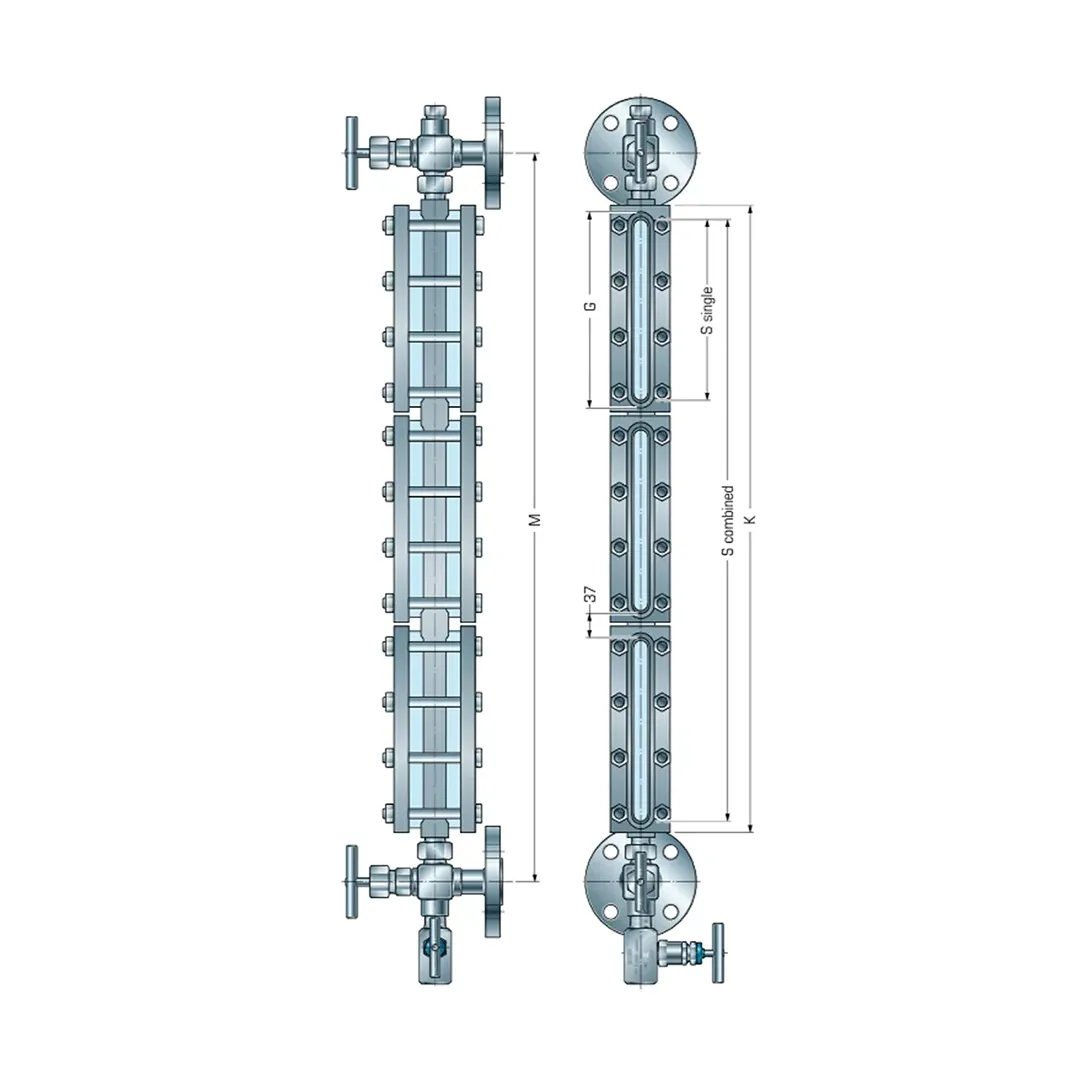

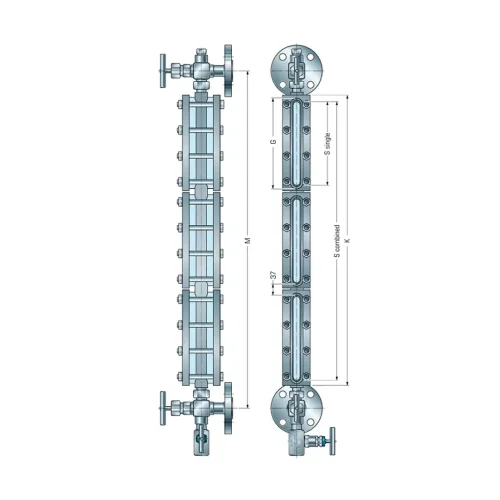

Transparent level gauge - LGT/CL

Transparent level gauge is installed in order to allow a direct level reading of a liquid stored in a tank. Transparent level gauge is installed on a tank when glasses have to be protected by means of mica shields or when different type of operating fluid have to be detected.

Main features

• Threaded connections to tank available on request
• Flanged drain/ vent connection available on request
• Plates for low temperature available on request. If temperature of operating fluid is lower than 0 °C, transparent level gauge is fitted with plates in order to allow visibility notwithstanding frost
• Graduated scale available on request. Graduated scale can be manufactured according to characteristics of tank
• Valves for connection to tank are provided with safety ball on request. Safety ball reduces leakages of operating fluid in case glasses brake down
• Diffusers and illuminator available on request
• Mica shields available on request. Mica shields are installed in order to protect glasses against corrosion phenomena due to operating fluid
• Insulation and tracing with cable/ steam available on request. Insulation and tracing with cable/ steam are requested for low environment temperature
• Graphite or PTFE gaskets according to working parameters
• Needle valves for connection to tank
